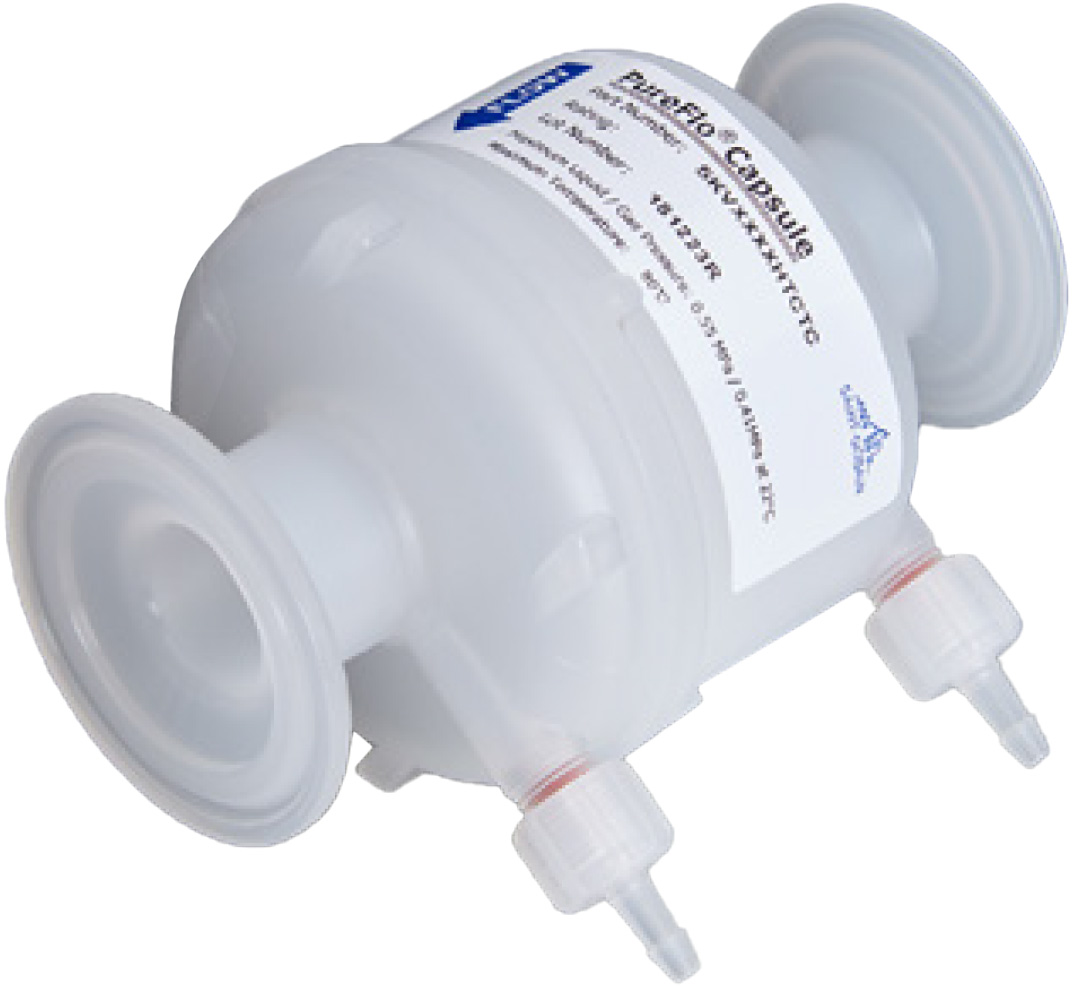

Saint-Gobain PureFlo PTFE Mid-Size Capsule Filter

Five capsule sizes with 0.2μm filter membrane and chemical resistance for high flow rate applications.

Starting at $137.27
Minimum Order Quantity of 36 Items.
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • 71.5mm body diameter
  • 52 to 260mm length without fittings
  • 0.2μm filter membrane
  • 730 to 5200cm2 filtration area
  • 80°C maximum temperature
  • 80psi maximum inlet pressure at 22°C
  • 72.5psi maximum forward differential pressure at 22°C
  • 43.5psi maximum reverse differential pressure at 22°C
  • Materials:
    • PTFE membrane
    • Polypropylene support materials
    • Polypropylene molded components
  • Sterilization methods:
    • Autoclave up to 20 cycles at 125°C for 30 minutes
    • Ethylene Oxide (testing is recommended)
  • Inherently hydrophobic materials

The Saint-Gobain PureFlo PTFE Mid-Size Capsule Filter is an easy-to-use filtration unit designed for single-use applications in the pharmaceutical industry. This filter offers superior flow performance by incorporating a sterilizing grade 0.2 μm membrane that exhibits a lower pressure drop. This superior flow performance results in a lightweight, compact filter designed to promote optimal process efficiency. Five capsule sizes are available, which include hose barb or tri-clamp fittings, and the option to exclude inlet or outlet vents.

The PureFlo PTFE series features a chemically resistant, hydrophobic polytetrafluoroethylene membrane that demonstrates exceptional thermal strength and flow performance in venting and compressed gas applications. Molded components and support materials are constructed with polypropylene. These materials allow the filter to withstand gamma irradiation and autoclaving processes in multiple-use applications.

Applications

  • Bioreactor vent
  • Moisture barrier
  • Compressed gas
  • Fermentation tank vent
  • Bottle or carboy vent
  • Autoclave vent
