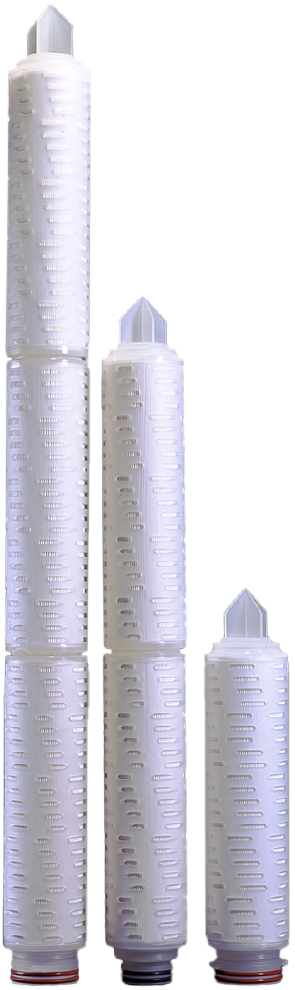

Saint-Gobain PureFlo Z Series PES Full-Size Cartridge Filter

10 to 30in cartridge with 0.1μm or 0.2μm membrane and optional prefilter for liquid applications. Autoclavable and steam sterilizable up to 10 cycles.

Starting at $209.65
Minimum Order Quantity of 24 Items.
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • PES, PET, PP, and nylon materials
  • Silicone o-rings
  • 70mm body diameter
  • 10 to 30in length
  • Filter membranes:
    • Single-layer: 0.1μm or 0.2μm
    • ZenFlo: 0.2/0.1μm, 0.45/0.2μm, 0.45/0.1μm, or 0.65/0.2μm
  • 0.29 to 2.56m2 filtration area
  • 80°C maximum temperature
  • 72.5psi maximum forward differential pressure at 22°C
  • Sterilization methods:
    • Steam-in-Place (SIP) Up to 10 cycles at 135°C for 30 minutes
    • Gamma irradiation up to 50kGy
    • Autoclave up to 10 cycles at 125°C for 30 minutes
    • Ethylene Oxide (testing is recommended)
  • Hydrophilic, asymmetric design for optimal flow

The Saint-Gobain PureFlo Z Series PES Full-Size Cartridge Filter features a validated 0.1 or 0.2μm sterilizing grade and a robust design capable of withstanding multiple steam-in-place cycles. The hydrophilic, asymmetric polyethersulfone (PES) membrane demonstrates exceptional throughput capacity and flow performance in liquid applications. The materials and design ensure quick and reliable pre-and post-use integrity testing in critical biopharmaceutical applications. The Z series PES Full-Size Cartridge is available in lengths ranging from 10 to 30 inches, with 0.1μm or 0.2μm membrane, and an optional ZenFlo pre-filter. Each unit includes 2-226 o-rings with tabs and spear, as well as a stainless steel Insert for steam-in-place applications.

Applications

  • Buffer
  • Cell Culture Media
  • Serum
  • Opthalmics
  • Reagents
  • Biologics
  • Final Drug Product
