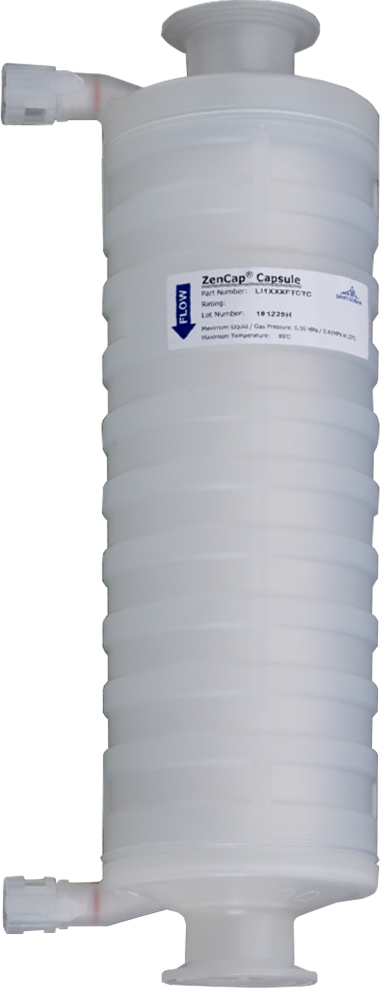

Saint-Gobain PureFlo PE ZenCap Full-Size Capsule Filter

Name: Saint-Gobain PureFlo PE ZenCap Full-Size Capsule Filter
Price: 653.1 USD
Availability: BackOrder

10 to 30in gamma-irradiatable capsule with 0.2μm filter membrane and temperature tolerance up to 60°C for high flow rate applications.

Images may not represent all possible configurations of this product.

Starting at $653.10

Manufactured

By Saint-Gobain

Includes

FREE Shipping

Availability

Call for availability

Product Specs

Features

Polyethylene materials
90mm body diameter
279 to 765mm length without fittings
0.2μm filter membrane
0.53 to 2.1m² filtration area
60°C maximum temperature
59.5psi maximum inlet pressure at 22°C
72.5psi maximum forward differential pressure at 22°C
30.45psi maximum reverse differential pressure at 22°C
Sterilization methods:
- Gamma irradiation up to 50kGy
- Ethylene Oxide (testing is recommended)
Inherently hydrophobic materials

The Saint-Gobain PureFlo PE ZenCap Full-Size Capsule Filter is an easy-to-use filtration unit designed for small-scale, single-use sterile assemblies. This filter offers superior flow performance by incorporating a sterilizing grade 0.2μm membrane that exhibits a lower pressure drop. This superior flow performance results in a lightweight, compact filter designed to promote optimal process efficiency. The PureFlo PE full-size capsule is available in four sizes with hose barb or tri-clamp fittings, and the option to include or exclude a 1/4-inch bleed valve vent and drain.

The PureFlo PE series features a polyethylene shell and a hydrophobic polyethylene membrane that demonstrate exceptional flow performance in venting applications. This material also allows the filter to withstand gamma irradiation and Ethylene Oxide sterilization methods.
