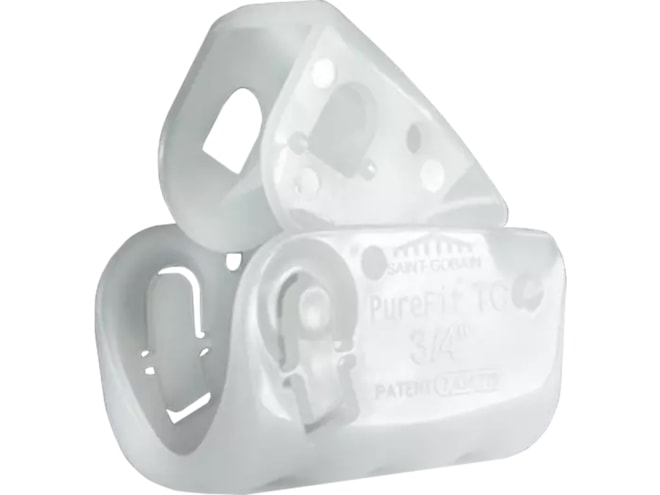

Saint-Gobain Pure-Fit TC Tube Clamps

Saint-Gobain Pure-Fit TC Tube Clamps are constructed from high-performance thermoplastic materials and designed with no sharp edges, reducing the potential for snags, scratches, and punctures. They come in two standard sizes of 3/8in and 3/4in, and in polypropylene or PVDF material. Both materials have been physically tested to meet the requirements of demanding pharmaceutical industry applications.

Polypropylene tube clamps have a 72 Shore D hardness, a tensile strength of 33.1MPa, and can withstand temperatures up to 200°F. PVDF tube clamps have a 78 Shore D hardness, a tensile strength of 43.4MPa, and can withstand temperatures up to 275°F. These durable materials allow the Pure-Fit TC to be sterilized and autoclaved, making it ideal for biopharma and pharmaceutical applications.

The Pure-Fit TC tube clamp features a side-release mechanism that facilitates secure, single-handed installation and a press-down locking mechanism. The locking mechanism is a fully encapsulated system that guards against untimely or unwanted releases. It also has a high degree of leverage to accommodate tubing with different durometers. The Pure-Fit TC’s innovative design allows for complete flow stoppage, and the clamp can be installed over the tube in the normal fashion or put together after the tube is already part of a completed assembly.
