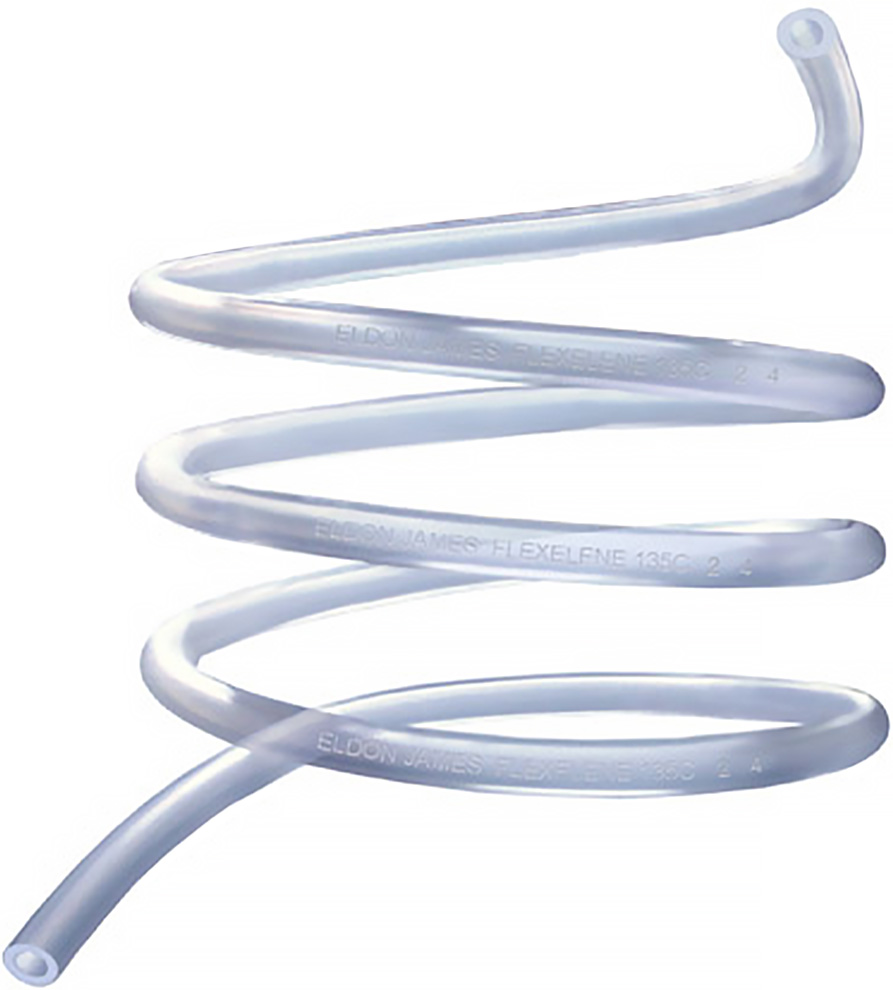

Eldon James Flexelene 135C TPE Tubing
Silicone alternative with -112 to 275°F temperature range, developed for bioprocess, pharmaceutical, and peristaltic pump applications.
Overview
Features
- Ultra-pure medical-grade TPE material
- 50ft standard coil length
- 1/32 to 1 3/8in inner diameter
- 3/32 to 1 3/4in outer diameter
- 3/64 to 3/16in wall thickness
- -112 to 275°F temperature range
- 68 Shore A hardness
- Ultra-low extractables and leachables
- Thermally weldable and heat sealable
- Sterilization methods:
- Autoclave up to 135°C for 30min
- E-beam/Gamma 25 to 45 kGy
- Ethylene oxide (EtO)
- Non-animal derived components
- Fully lot traceable
- Certifications:
- USP Class VI biocompatible
- USP 661 compliant
- BPOG tested
- REACH and RoHS compliant
- ISO 10993-5 – non-cytotoxic
- ISO 10993-4 – non-hemolytic
- FDA 21 CFR 177.2600
- BSE/TSE compliant
Description
Eldon James Flexelene 135C TPE Tubing is formulated to meet the critical demands of bioprocess, medical, and laboratory applications. It features a durometer hardness of 68 Shore A, a temperature range of -112 to 275°F, and is an excellent choice for use in high-pressure applications. This tubing is available in sizes ranging from 1/32 x 3/32in to 1 x 1 1/4in and comes in a standard coil length of 50 feet.
Flexelene 135C tubing is manufactured for ultra-pure fluid transfer and meets the needs of a diverse range of pharmaceutical and bioprocessing applications. It meets the requirements of REACH, RoHS, USP 661, BPOG, CFR, USP Class VI, ISO 9001 and 13485, and other special test requirements. It is also compatible with common sterilization processes, such as autoclaving, ethylene oxide, and e-beam/gamma.
Applications
- Pharmaceutical and biotech processing
- Single-use systems
- Peristaltic pump
- Sterile filling
- Laboratory use
