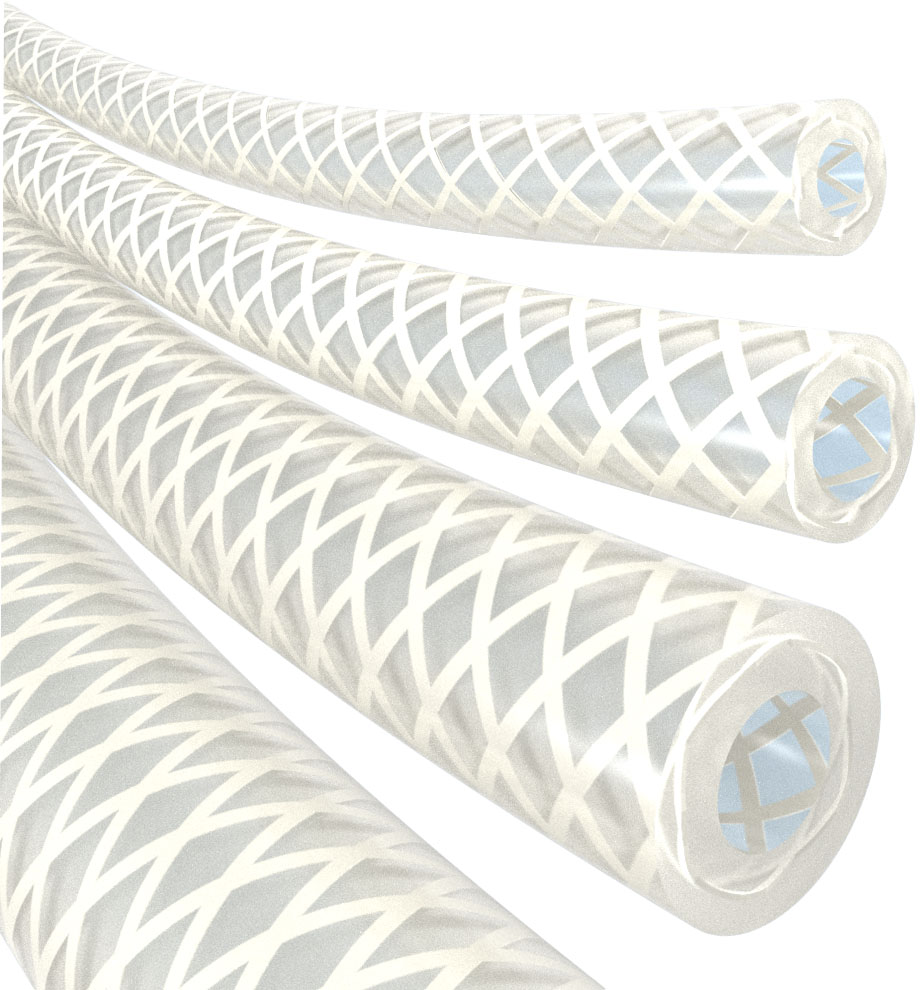

Eldon James Braid Reinforced Flexelene 135C TPE Tubing
Engineered for high-purity fluid under pressure with biocompatibility for demanding biomedical and pharmaceutical applications.
Overview
Features
- Ultra-pure medical-grade TPE material
- 25 or 50ft coil length
- 1/8 to 1in inner diameter
- 3/8 to 1 3/8in outer diameter
- 1/8 or 3/16in wall thickness
- -112 to 275°F temperature range
- 68 Shore A hardness
- Ultra-low extractables and leachables
- Thermally weldable and heat sealable
- Sterilization methods:
- Autoclave up to 135°C for 30min
- E-beam/Gamma 25 to 45 kGy
- Ethylene oxide (EtO)
- Animal derivative-free components
- Fully lot traceable
- Certifications:
- USP Class VI biocompatible
- USP 661 compliant
- BPOG tested
- BSE/TSE compliant
- ISO 9001 and 13485
- ISO 10993 (part 4 and 5)
- Cytotoxicity Criteria
- REACH and RoHS compliant
- FDA 21 CFR 177.2600 compliant
Description
Eldon James Braid Reinforced Flexelene 135C TPE Tubing is formulated to meet the critical demands of bioprocess, medical, and laboratory applications. It features a durometer hardness of 68 Shore A, a temperature range of -112 to 275°F, and is an excellent choice for use in high-pressure applications. This tubing is available in sizes ranging from 1/8 x 3/8in to 1 x 1 3/8in, with standard coil lengths of 25 or 50 feet.
Braided Flexelene 135C tubing is manufactured for ultra-pure fluid transfer and meets the needs of a diverse range of pharmaceutical and bioprocessing applications. It meets the requirements of REACH, RoHS, USP 661, BPOG, CFR, USP VI, ISO 9001 and 13485, and other special test requirements. It is also compatible with common sterilization processes, such as autoclaving, ethylene oxide, and e-beam/gamma.
Applications
- Pharmaceutical and biotech processing
- Single-use systems
- Sterile filling
- Laboratory use
- Skid transfers
- Processing lines
- Media processing
- High-volume ultra-pure fluid transfer
