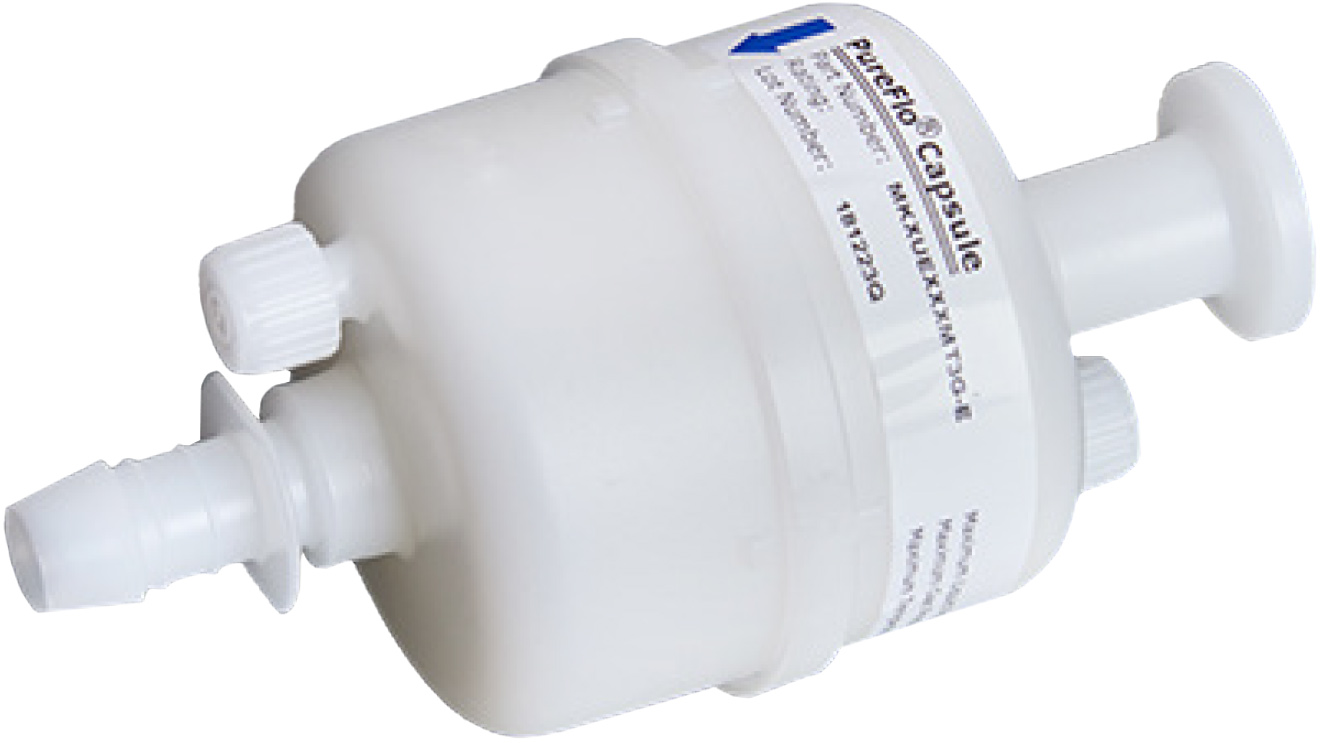

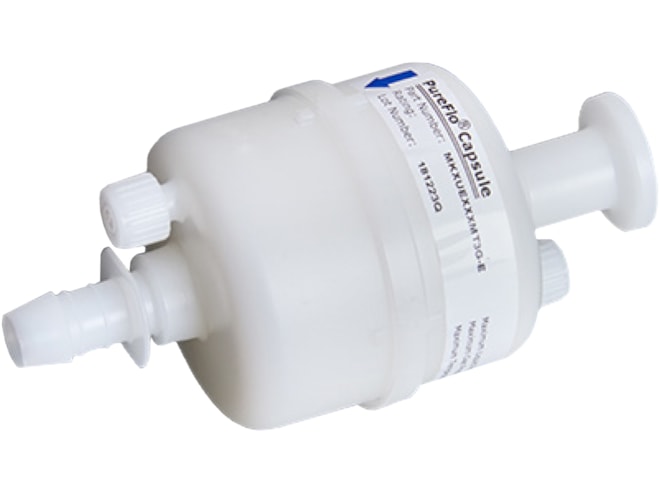

Saint-Gobain PureFlo PE Mini Capsule Filter
59 x 60mm gamma-irradiatable capsule with 0.2μm filter membrane and temperature tolerance up to 60°C for high flow rate applications.
- By Saint-Gobain
Overview
Features
- Polyethylene materials
- 59mm body diameter
- 60mm length without fittings
- 0.2μm filter membrane
- 400cm2 filtration area
- 60°C maximum temperature
- 59.5psi maximum inlet pressure at 22°C
- 72.5psi maximum forward differential pressure at 22°C
- 30.45psi maximum reverse differential pressure at 22°C
- Sterilization methods:
- Gamma irradiation up to 50kGy
- Ethylene Oxide (testing is recommended)
- Inherently hydrophobic materials
Description
The Saint-Gobain PureFlo PE Mini Capsule Filter is an easy-to-use filtration unit designed for small-scale, single-use sterile assemblies. This filter offers superior flow performance by incorporating a sterilizing grade 0.2μm membrane that exhibits a lower pressure drop. This superior flow performance results in a lightweight, compact filter designed to promote optimal process efficiency. The PureFlo PE mini capsule is available with hose barb, luer lock, or tri-clamp fittings, and with the option to exclude vents near the inlet and outlet.
The PureFlo PE series features a polyethylene shell and a hydrophobic polyethylene membrane that demonstrate exceptional flow performance in venting applications. This material also allows the filter to withstand gamma irradiation and Ethylene Oxide sterilization methods.
Typical Applications
- Bioreactor vent
- Moisture barrier
- Compressed gas
- Fermentation tank vent
- Bottle or carboy vent
