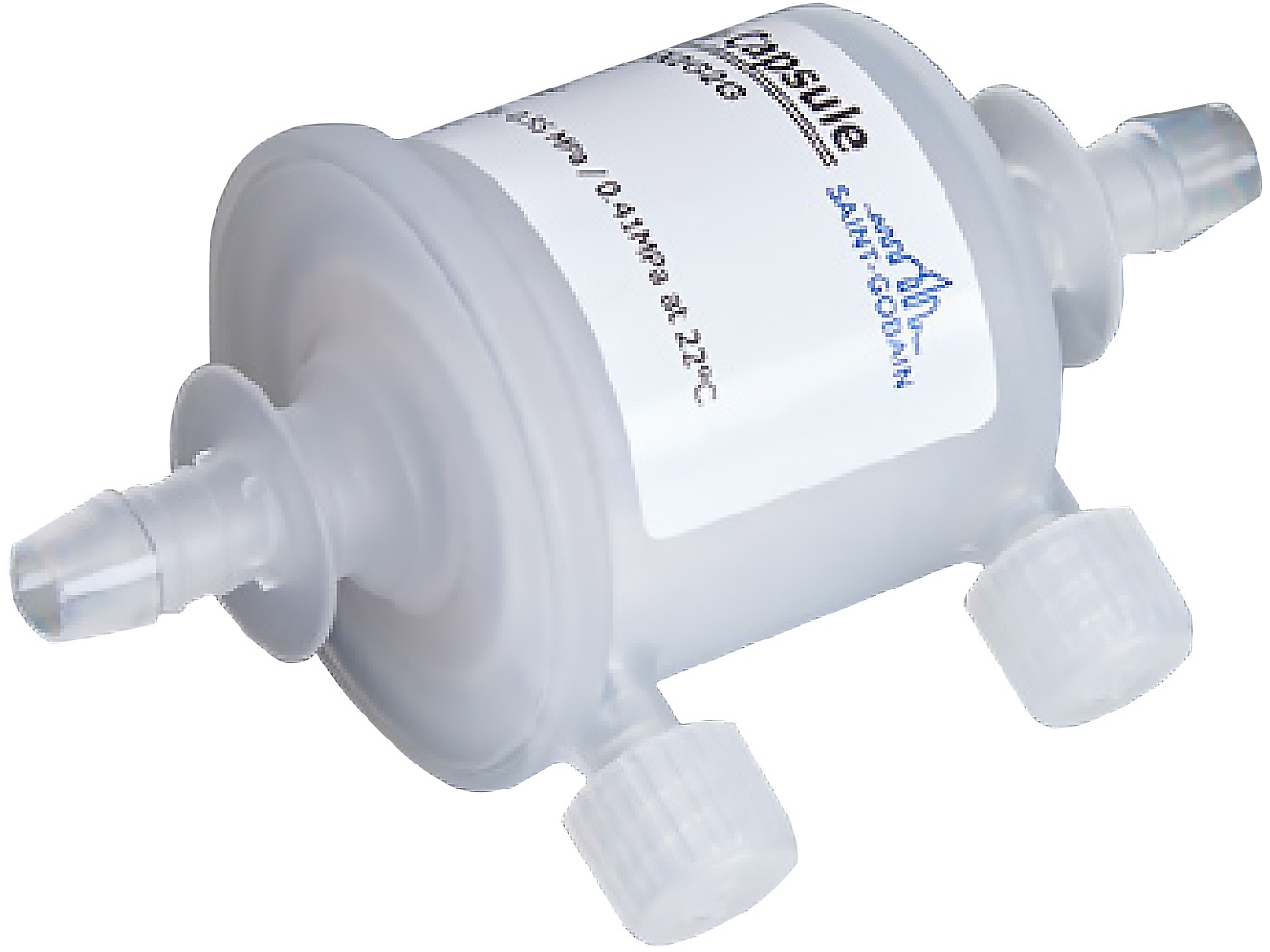

Saint-Gobain PureFlo PE Junior Capsule Filter

41mm gamma-irradiatable capsule with 0.2μm filter membrane and temperature tolerance up to 60°C for high flow rate applications.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-800-795-6436. We’re open 8:00 am to 5:00 pm ET.
Starting Price: $94.98
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Minimum Order Quantity of 36 Items.
Highlights...

Features

  • Polyethylene materials
  • 41mm body diameter
  • 41mm length without fittings
  • 0.2μm filter membrane
  • 130cm2 filtration area
  • 60°C maximum temperature
  • 59.5psi maximum inlet pressure at 22°C
  • 72.5psi maximum forward differential pressure at 22°C
  • 30.45psi maximum reverse differential pressure at 22°C
  • Sterilization methods:
    • Gamma irradiation up to 50kGy
    • Ethylene Oxide (testing is recommended)
  • Inherently hydrophobic materials

The Saint-Gobain PureFlo PE Junior Capsule Filter is an easy-to-use filtration unit designed for small-scale, single-use sterile assemblies. This filter offers superior flow performance by incorporating a sterilizing grade 0.2μm membrane that exhibits a lower pressure drop. This superior flow performance results in a lightweight, compact filter designed to promote optimal process efficiency. The PureFlo PE junior capsule is available with hose barb, luer lock, or tri-clamp fittings, and with the option to exclude vents near the inlet and outlet.

The PureFlo PE series features a polyethylene shell and a hydrophobic polyethylene membrane that demonstrate exceptional flow performance in venting applications. This material also allows the filter to withstand gamma irradiation and Ethylene Oxide sterilization methods.

Typical Applications

  • Bioreactor vent
  • Moisture barrier
  • Compressed gas
  • Fermentation tank vent
  • Bottle or carboy vent
