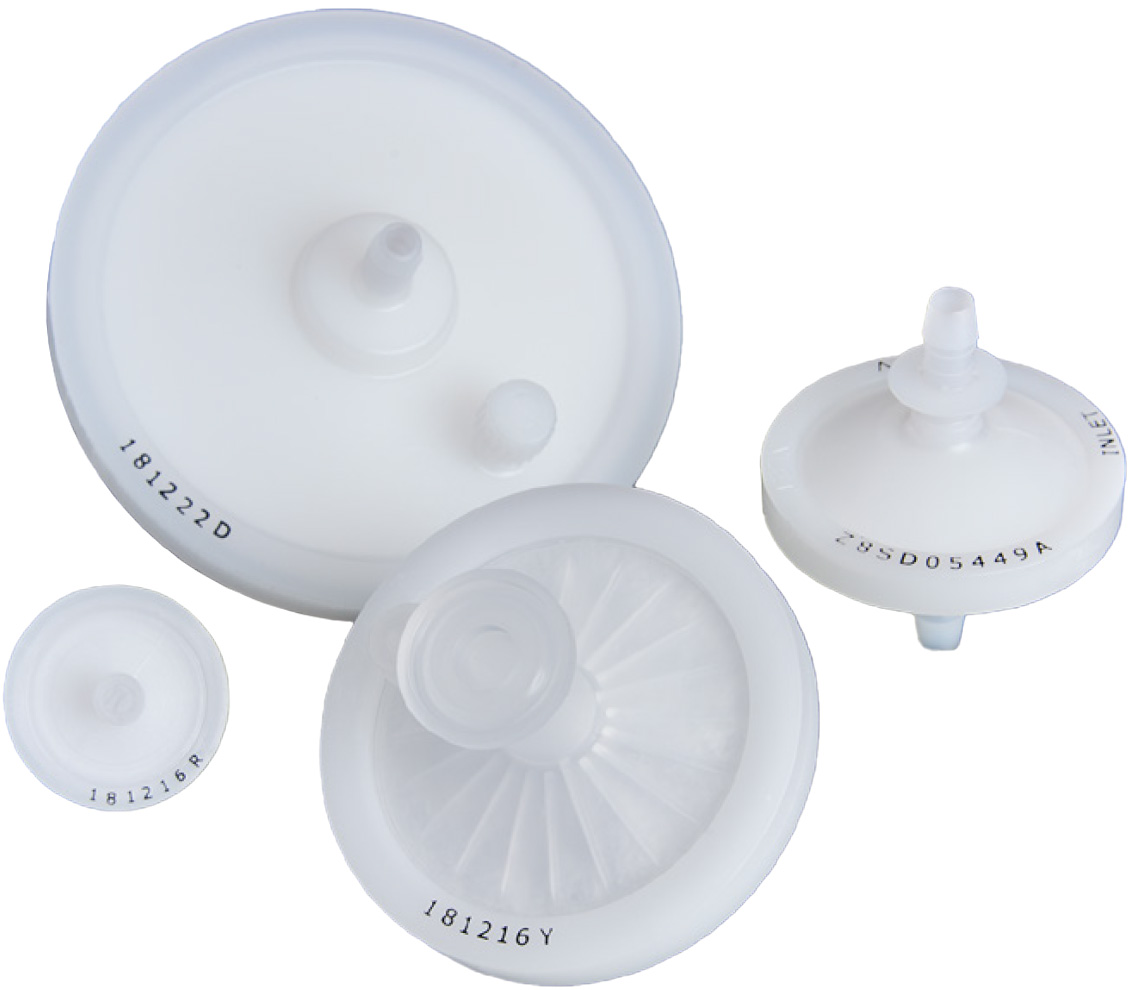

Saint-Gobain PureFlo PE Disc Capsule Filter

Gamma-irradiatable with 0.2μm filter membrane and temperature tolerance up to 60°C for high flow rate applications.

Starting at $5.07
Minimum Order Quantity of 150 Items.
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • Polyethylene materials
  • 16 to 45.5mm body diameter
  • 3.7 to 8mm length without fittings
  • 0.2μm filter membrane
  • 0.8 to 10.5cm2 filtration area
  • 60°C maximum temperature
  • 30psi maximum inlet pressure at 22°C
  • 30psi maximum forward differential pressure at 22°C
  • Sterilization methods:
    • Gamma irradiation up to 50kGy
    • Ethylene Oxide (testing is recommended)
  • Inherently hydrophobic materials

The Saint-Gobain PureFlo PE Disc Capsule Filter is an easy-to-use filtration unit designed for small-scale, single-use sterile assemblies. This filter offers superior flow performance by incorporating a sterilizing grade 0.2μm membrane that exhibits a lower pressure drop. This superior flow performance results in a lightweight, compact filter designed to promote optimal process efficiency. The PureFlo PE disc capsule is available in three sizes with hose barb or luer lock fittings.

The PureFlo PE series features a polyethylene shell and a hydrophobic polyethylene membrane that demonstrate exceptional flow performance in venting applications. This material also allows the filter to withstand gamma irradiation and Ethylene Oxide sterilization methods.

Typical Applications

  • Bioreactor vent
  • Moisture barrier
  • Compressed gas
  • Fermentation tank vent
  • Bottle or carboy vent
