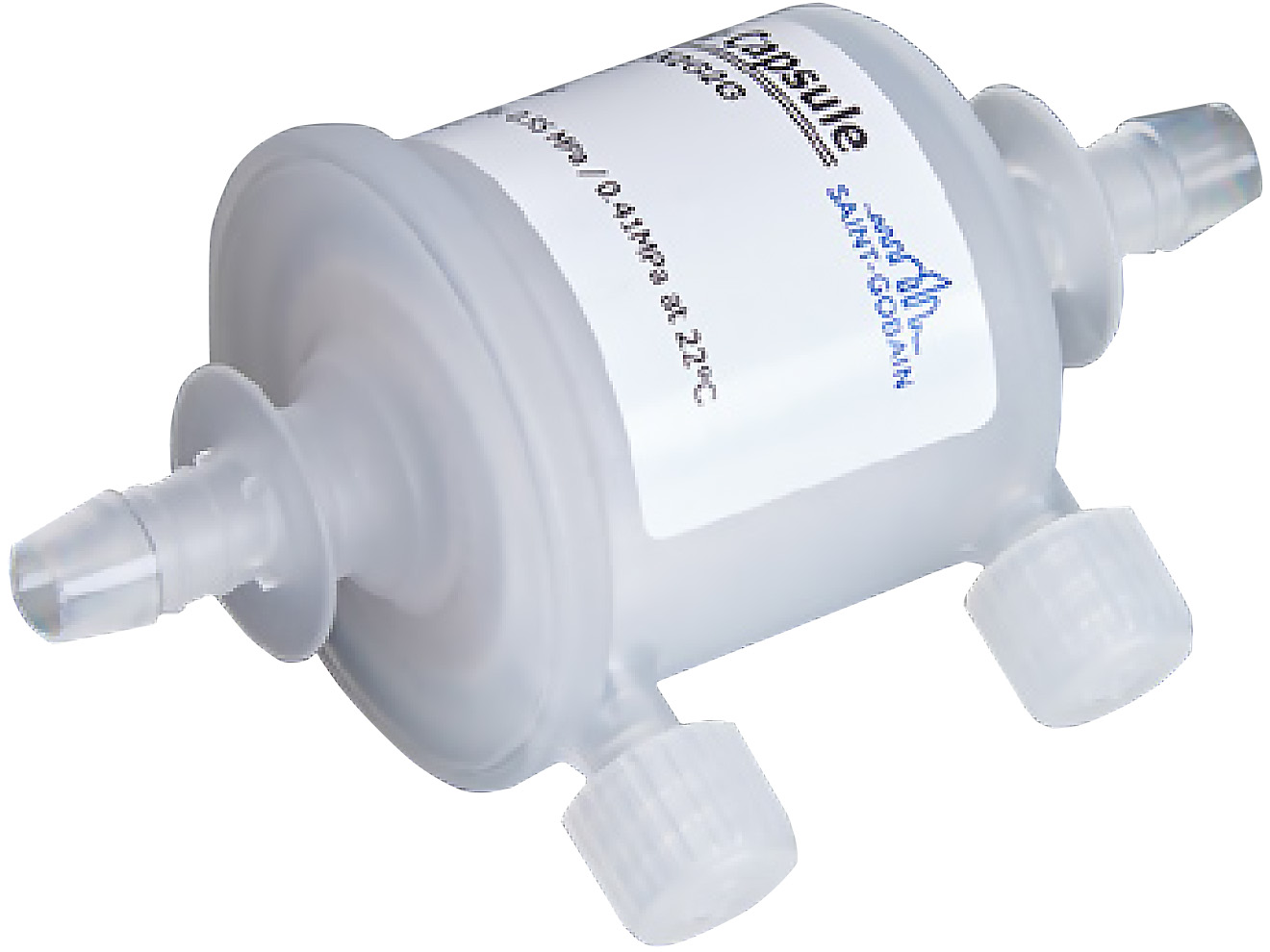

Saint-Gobain PureFlo PTFE Junior Capsule Filter
41mm capsule with 0.2μm filter membrane and chemical resistance for high flow rate applications.
- By Saint-Gobain
Overview
Features
- 0.2μm filter membrane
- 230cm2 filtration area
- 80°C maximum temperature
- 80psi maximum inlet pressure at 22°C
- 72.5psi maximum forward differential pressure at 22°C
- 30psi maximum reverse differential pressure at 22°C
- Materials:
- PTFE membrane
- Polypropylene support materials
- Polypropylene molded components
- Sterilization methods:
- Autoclave up to 20 cycles at 125°C for 30 minutes
- Ethylene Oxide (testing is recommended)
- Inherently hydrophobic materials
Description
The Saint-Gobain PureFlo PTFE Junior Capsule Filter is an easy-to-use filtration unit designed for single-use applications in the pharmaceutical industry. This filter offers superior flow performance by incorporating a sterilizing grade 0.2 μm membrane that exhibits a lower pressure drop. This superior flow performance results in a lightweight, compact filter designed to promote optimal process efficiency. The PureFlo PTFE junior capsule is available with hose barb, luer lock, or tri-clamp fittings, and the option to exclude inlet or outlet vents.
The PureFlo PTFE series features a chemically resistant, hydrophobic polytetrafluoroethylene membrane that demonstrates exceptional thermal strength and flow performance in venting and compressed gas applications. Molded components and support materials are constructed with polypropylene. These materials allow the filter to withstand autoclaving processes in multiple-use applications.
Applications
- Bioreactor vent
- Moisture barrier
- Compressed gas
- Fermentation tank vent
- Bottle or carboy vent
- Autoclave vent
