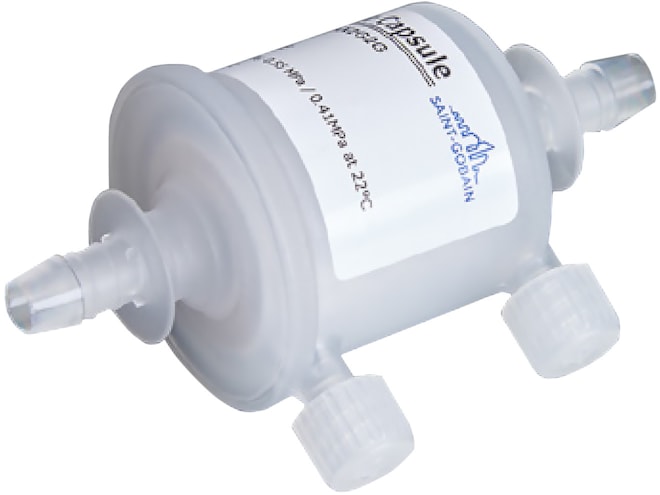

Saint-Gobain PureFlo Z Series PES Junior Capsule Filter

Name: Saint-Gobain PureFlo Z Series PES Junior Capsule Filter
Price: 86.56 USD
Availability: BackOrder

Sterilizable filter with 0.1μm or 0.2μm membrane, optional ZenFlo prefilter, hose barb, luer, or tri-clamp fittings, and optional vent.

Images may not represent all possible configurations of this product.

Starting at $86.56

Minimum Order Quantity of 36 Items.

Manufactured

By Saint-Gobain

Includes

FREE Shipping on orders of $500 or more

Availability

Call for availability

Product Specs

Features

41mm body diameter
41mm body length (without fittings)
170 or 260cm² filtration area
Filter membranes:
- Single-layer: 0.1μm or 0.2μm
- ZenFlo: 0.2/0.1μm, 0.45/0.2μm, 0.45/0.1μm, or 0.65/0.2μm
80°C maximum temperature
78psi maximum inlet pressure
72.5psi maximum forward differential pressure at 22°C
Materials:
- Polyethersulfone membrane
- Polyester support materials
- Polypropylene and nylon molded components
Broad chemical compatibility
Sterilization:
- Gamma irradiation up to 50kGy
- Autoclave up to 10 cycles at 125°C for 30 minutes
- Ethylene Oxide (testing recommended)
Hydrophilic, asymmetric design for optimal flow

The Saint-Gobain PureFlo Z Series PES Junior Capsule Filter is a gamma-irradiatable filtration unit, ideal for integration into single-use sterile assemblies in biopharma applications. The PureFlo Z Series PES capsules incorporate a final sterilizing grade 0.1 or 0.2μm membrane as well as an optional built-in ZenFlo asymmetric prefilter tailored to enhance filter performance and efficiency in a variety of biopharmaceutical processes. This filter capsule is available with hosebarb, luer, or tri-clamp fittings and has options to exclude vents at the inlet or outlet positions.

The hydrophilic, asymmetric polyethersulfone membrane demonstrates exceptional throughput capacity and flow performance in liquid applications. The materials and design ensure quick and reliable pre- and post-use integrity testing in critical biopharmaceutical applications. These materials also allow the filter to withstand gamma irradiation and autoclave processes in multiple-use applications.
