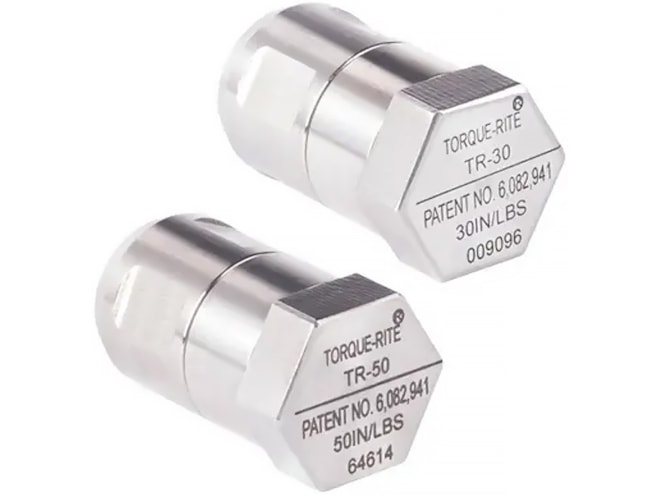

Rubber Fab Torque Rite Nut

Starting at $143.88

Manufactured

By Rubber Fab

Includes

FREE Shipping on orders of $200 or more

Availability

Usually ships in 2-4 weeks

Product Specs

Features

304 stainless steel
Overall Height: 1.670in
Driving Hex: 0.875 (7/8in)
Body Diameter: 0.875in
Override Flats: 0.8125 (13/16in)
Thread Size: 5/16-18in
Options include:
- 30in/lbs force for elastomers
- 50in/lbs force for PTFE and Tuf-Steel
Manual override safety feature
Audible “click” to indicate correct inch/pounds force
Retrofits all sanitary hinge clamps, mini through 6in
Works with all Smart Gasket products

This product is an accessory for the following products:

Rubber Fab Double Pin Sanitary Hinge Clamp

304 stainless steel in double pin style for 1.5 to 6in sizes for sanitary hose connections.

Starting at $32.93

Rubber Fab High Pressure Clamp

304 stainless steel clamp with brass nuts for high pressure applications.

Starting at $33.07

Rubber Fab I-Line Hinge Clamp

304 stainless steel in an I-Line style for sanitary piping systems.

Starting at $44.05

Rubber Fab Single Pin Sanitary Hinge Clamp

304 or 316 stainless steel clamp with optional gold identifier for sanitary process systems.

Starting at $15.90

Rubber Fab Spore Trap Slotted Hinge Clamp

1 1/2 to 4in sizes with one test strip port and optional thermocouple port for collecting samples within a piping system.

Starting at $206.18

Rubber Fab Tabbed Orifice Plate Hinge Clamp

Fits 0.5 to 4in size orifice plates. High pressure version available.

Starting at $88.43

Rubber Fab Thermocouple Hinge Clamp

0.5 to 4in with up to 4 ports for use with standard and biologic indicator smart gaskets.

Starting at $195.77

Rubber Fab Torque Rite Tee

For torque control during clamp installation and removal.

Starting at $308.97

The Rubber Fab Torque Rite Nut provides a controlled compression system when using Rubber Fab sanitary gaskets. Torque-Rite allows controlled compression and expansion while maintaining constant inch/pound force, ensuring a controlled compression ID. Torque-Rite eliminates the problems associated with over- or under-tightening a seal, which can lead to an unsanitary system.

When tightened, the Torque-Rite’s self-limiting internal mechanism will make an audible “click,” signaling the user that they have reached proper inch/pounds force. If further tightening is attempted, there will be more “clicks” but no additional application of force on the hygienic seal. Torque-Rite has a built-in manual override feature in case emergency conditions arise.
