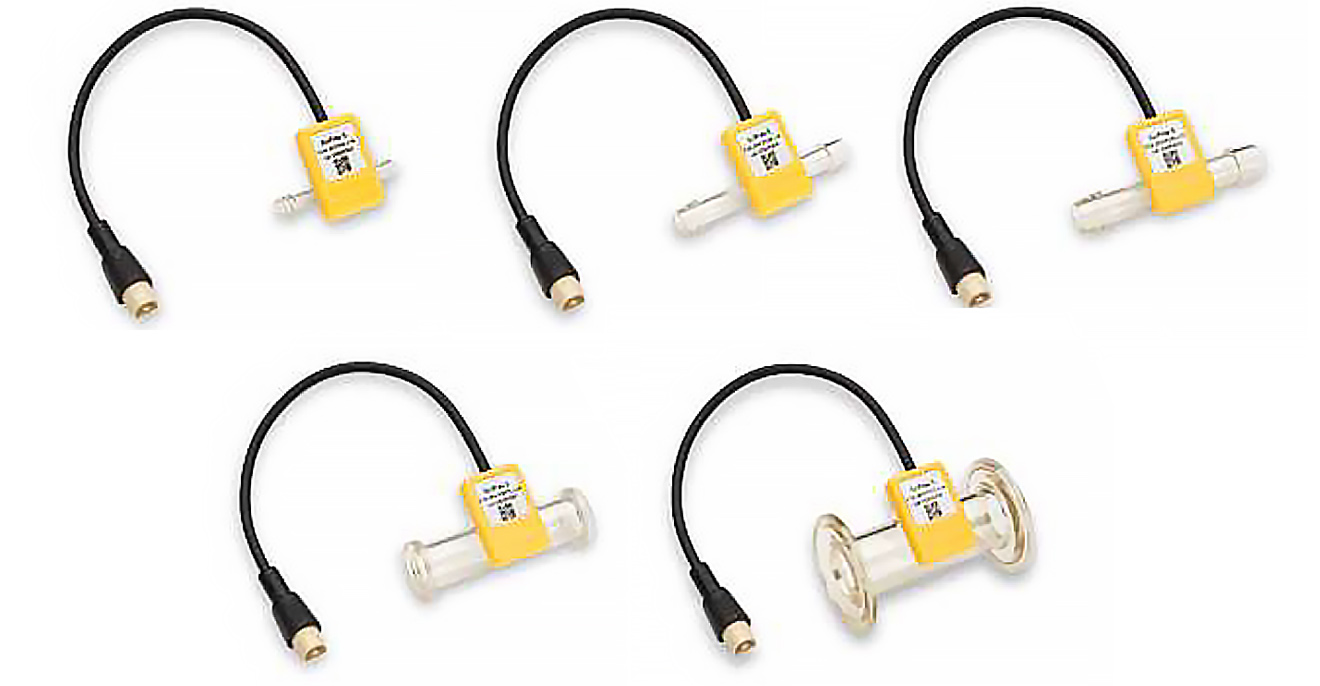

Parker SciPres S Series Single Use Pressure Sensor

Pack of 5 gamma stable and caustic resistant sensors with -10 to 75psi pressure rating, ±3% accuracy. Luer, barb, and tri-clamp connection options available.

Starting at $500.00
Manufactured
Includes
Availability
  • Usually ships in 4-6 weeks
Product Specs

Features

  • -10 to 75psi pressure range
  • ±3% accuracy of reading, 0 to 75psi
  • Max flow rate:
    • 1 to 60 L/min
    • 0.26 to 15.9 gpm/psi
    • 0.23 to 13.6 M3/h/bar
  • Connection sizes:
    • Luer
    • 3/8in barb
    • 1/2in barb
    • 3/4in tri-clamp
    • 1in tri-clamp 'Ladish'
  • IP67-rated cable
  • Tight tolerances
  • Sterilization compatibility:
    • IPA 70%
    • Gamma-stable up to 45 kGy
    • NaOH stable (0.1N - 1.0N)
  • 3 year shelf life pre-gamma / 2 years post-gamma
  • USP Class VI, REACH compliant, animal-free wetted materials

The Parker SciPres S Series Single Use Pressure Sensor provides single-use pressure sensing with a plug-and-play design that is scalable from Luer devices to 1-inch to tri-clamp Ladish fittings. This sensor features a high ±3% accuracy rating at pressures from 0 to 75psi, and integrates with SciPres monitors as well as third-party prequalified monitors. It comes in a pack of five and is available in 5 connection sizes, with or without gamma irradiation.

Data recorded by the SciPres S can be accessed via SciDoc software and can be sent directly to a PC via SciPres monitors or as part of an integrated platform via a DIN card.
