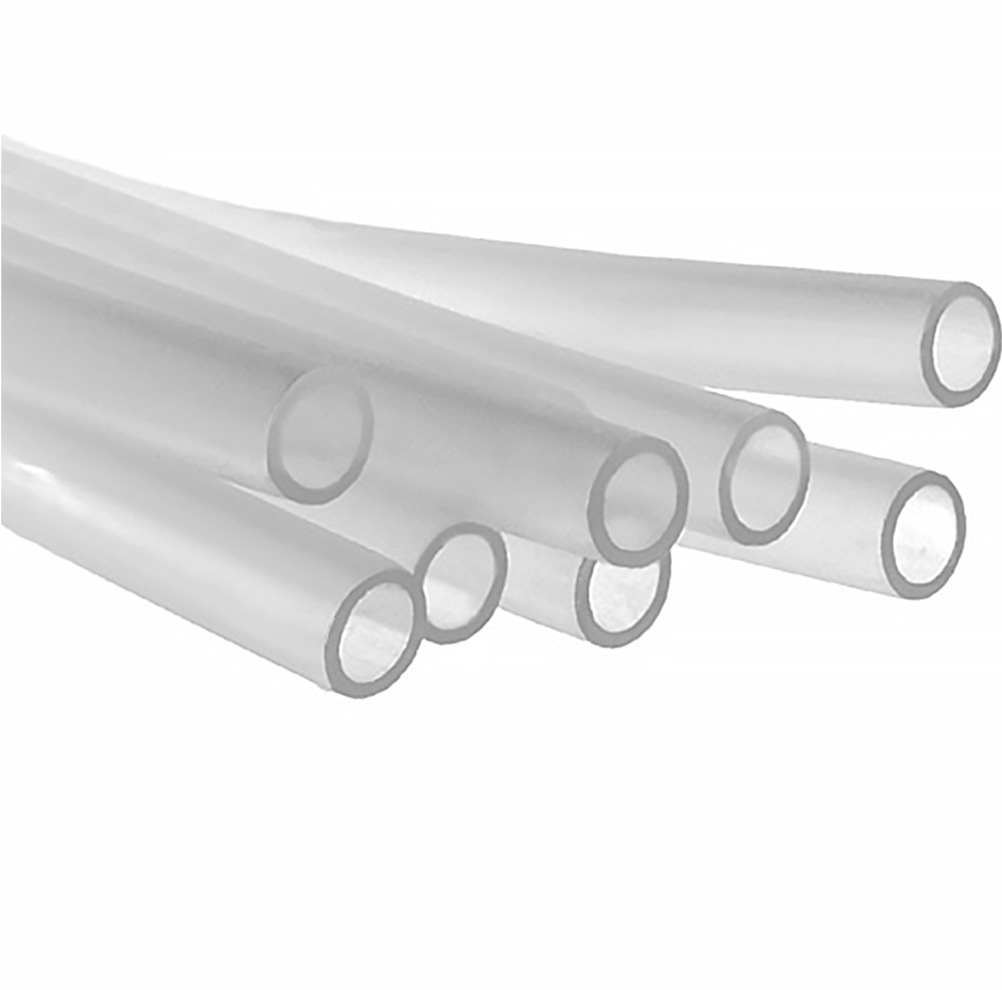

Eldon James Flexelene E Series TPE Tubing
Flexible, non-allergenic bioprocess tubing with low protein binding properties and 66A, 75A, 84A, or 95A durometer hardness formulations.
Overview
Features
- TPE alloy material
- 1/32 to 1in inner diameter
- 3/32 to 1 1/4in outer diameter
- 1/32 to 1/8in wall thickness
- 50ft coil length
- 66 to 95 Shore A hardness
- -58 to 250°F temperature range
- Thermally weldable and heat sealable
- Sterilization methods:
- Autoclavable
- Gamma at 45 kGy
- Ethylene oxide (EtO)
- Animal-derived component-free
- Ultra-low extractables and leachables
- No DEHP phthalates or plasticizers
- Certifications:
- USP Class VI biocompatible
- FDA compliant
- RoHS compliant
- ISO 9001 compliant
- ISO 10993-4 - non-hemolytic
- ISO 10993-5 - non-cytotoxic
Description
Eldon James Flexelene E Series is a flexible, non-allergenic TPE alloy tubing formulated with low protein-binding properties for the biopharmaceutical and pharmaceutical industries. It is available in a variety of sizes with inner diameters ranging from 1/32 to 1 inch, and outer diameters ranging from 3/32 to 1 1/4 inches. Flexelene E series comes in four formulations, with 66 to 95 Shore A durometer hardness variants to meet the differing needs of these industries.
- Flexelene 66E features a durometer rating of 66 Shore A and is designed to withstand vigorous movements in peristaltic pump applications.
- Flexelene 75E features a durometer rating of 75 Shore A and is designed for biocompatibility in peristaltic pump and fluid transfer applications.
- Flexelene 84E features a durometer rating of 84 Shore A and has a biocompatible surface designed for fluid transfer in sensitive applications.
- Flexelene 95E features a higher durometer of 95 Shore A, which allows it to resist collapse in high-vacuum applications.
Flexelene E Series is DEHP-free, Phthalate-free, and PCV-free. It also has ultra-low extractables/leachables and meets USP Class VI requirements.
