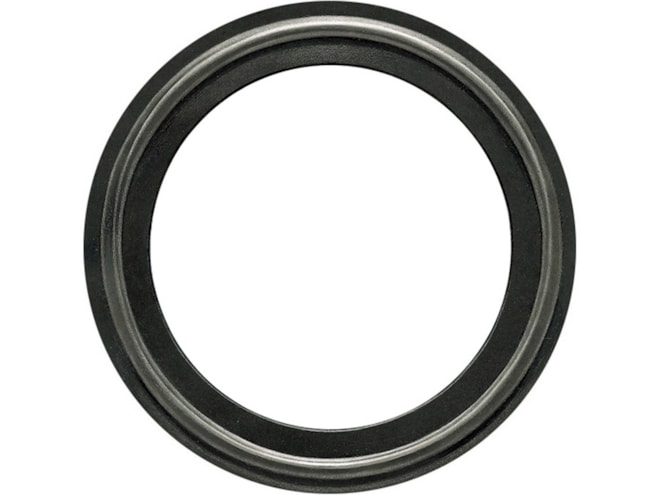

Rubber Fab Schedule V Gasket
Standard and flanged gaskets for sanitary piping systems in pharmaceutical, food, dairy, and beverage industries.
Overview
Features
- 1 to 12in sizes
- Standard and flanged versions available
- Buna, EPDM, FKM, silicone, or PTFE material
Tech Specs
Due to the complexity of the data presented in some of the images below, describing them accurately in text is challenging. If you require further assistance, please contact one of our engineers for more detailed information.
| Size | Gasket ID (in) | Gasket OD (in) | Bead Center (in) |
| 1in | 1.200 | 2.000 | 1.710 |
| 1.5in | 1.780 | 2.520 | 2.220 |
| 2in | 2.260 | 3.050 | 2.780 |
| 2.5in | 2.720 | 3.580 | 3.290 |
| 3in | 3.350 | 4.170 | 3.820 |
| 4in | 4.350 | 5.120 | 4.800 |
| 6in | 6.430 | 7.200 | 6.850 |
| 8in | 8.430 | 9.190 | 8.860 |
| 10in | 10.490 | 11.320 | 11.000 |
| 12in | 12.440 | 13.310 | 12.930 |
