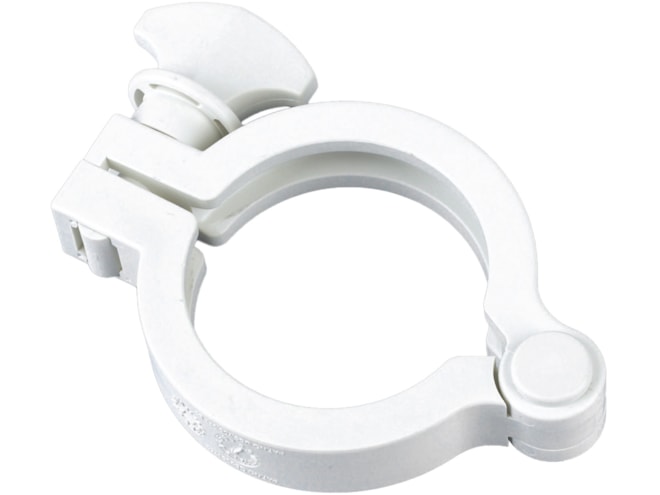

Rubber Fab Non-Metallic Nylon Hinge Clamp

Fiberglass reinforced nylon construction in 0.5 to 8in sizes for non metal sanitary hose connections.

Starting at $24.75
Manufactured
Includes
Availability
  • Usually ships in 2-4 weeks
Product Specs

Features

  • Non-metallic fiberglass reinforced nylon
  • 0.5 to 8in sizes
  • -40 to 200°F temperature range
  • 150psi at 70°F maximum pressure
  • 2nm maximum recommended installation torque
  • Sterilization methods
    • Autoclavable up to 275°F
    • Gamma stable to 25 - 40kGy
    • Maximum irradiation dosage is 6Mrad
  • For use in GMP manufacturing

The Rubber Fab Non-Metallic Nylon Hinge Clamp is a fiberglass-reinforced nylon hinge clamp designed for non-metallic sanitary hose connections. It is a lightweight solution that will not distort non-metallic ferrules or stainless steel clamps during high-temperature operation and sterilization procedures. This nylon clamp is ideal for applications where reduced weight and reduced thermal conductivity transfer are important.

This clamp is approved for use in cGMP manufacturing and accepts sanitary ferrules according to BS 4825, ISO 2852, and Tri-Clover standards. It may be used on non-metallic to non-metallic, non-metallic to metallic, and metallic to metallic sanitary mechanical joint connections.
