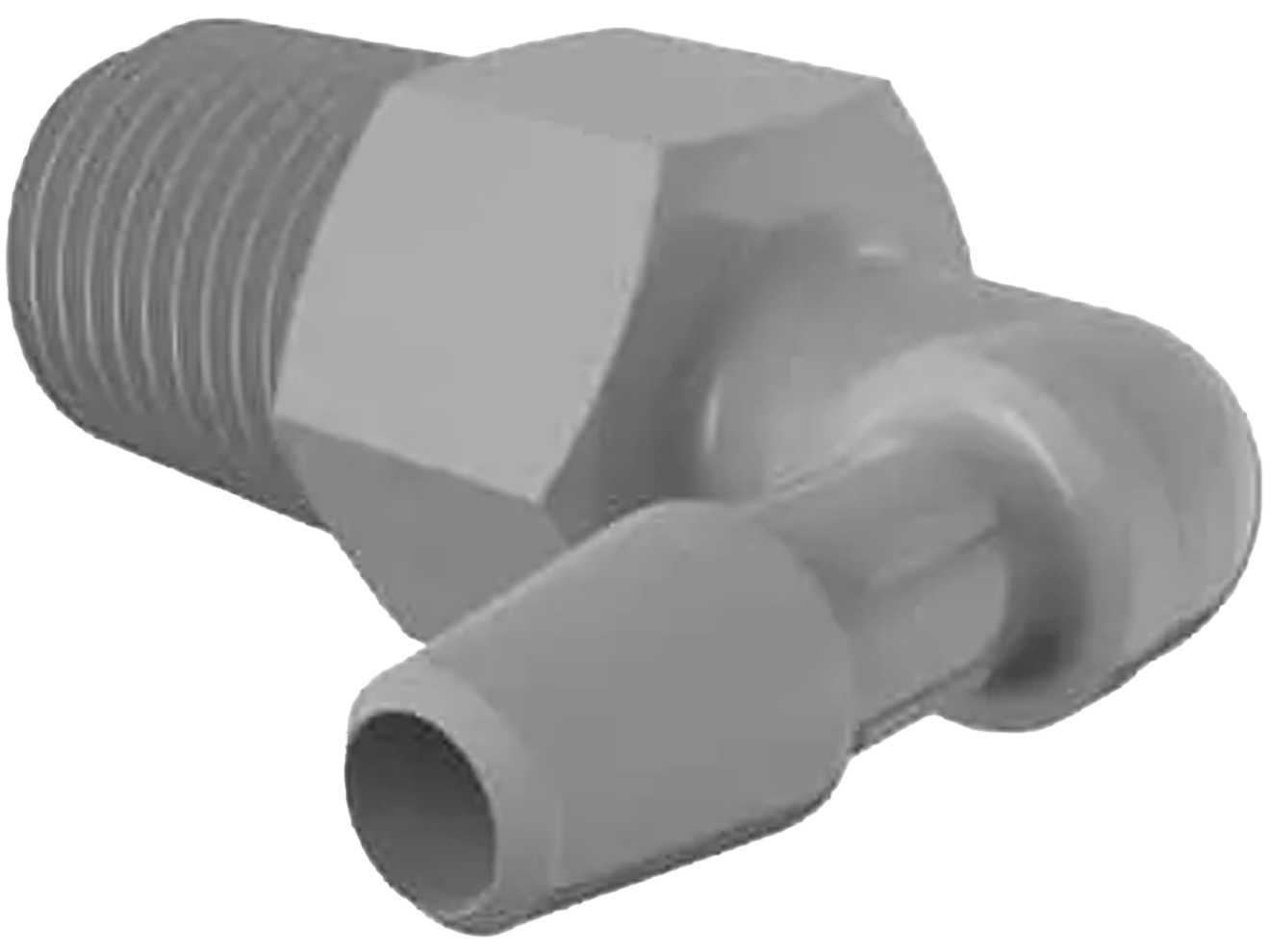

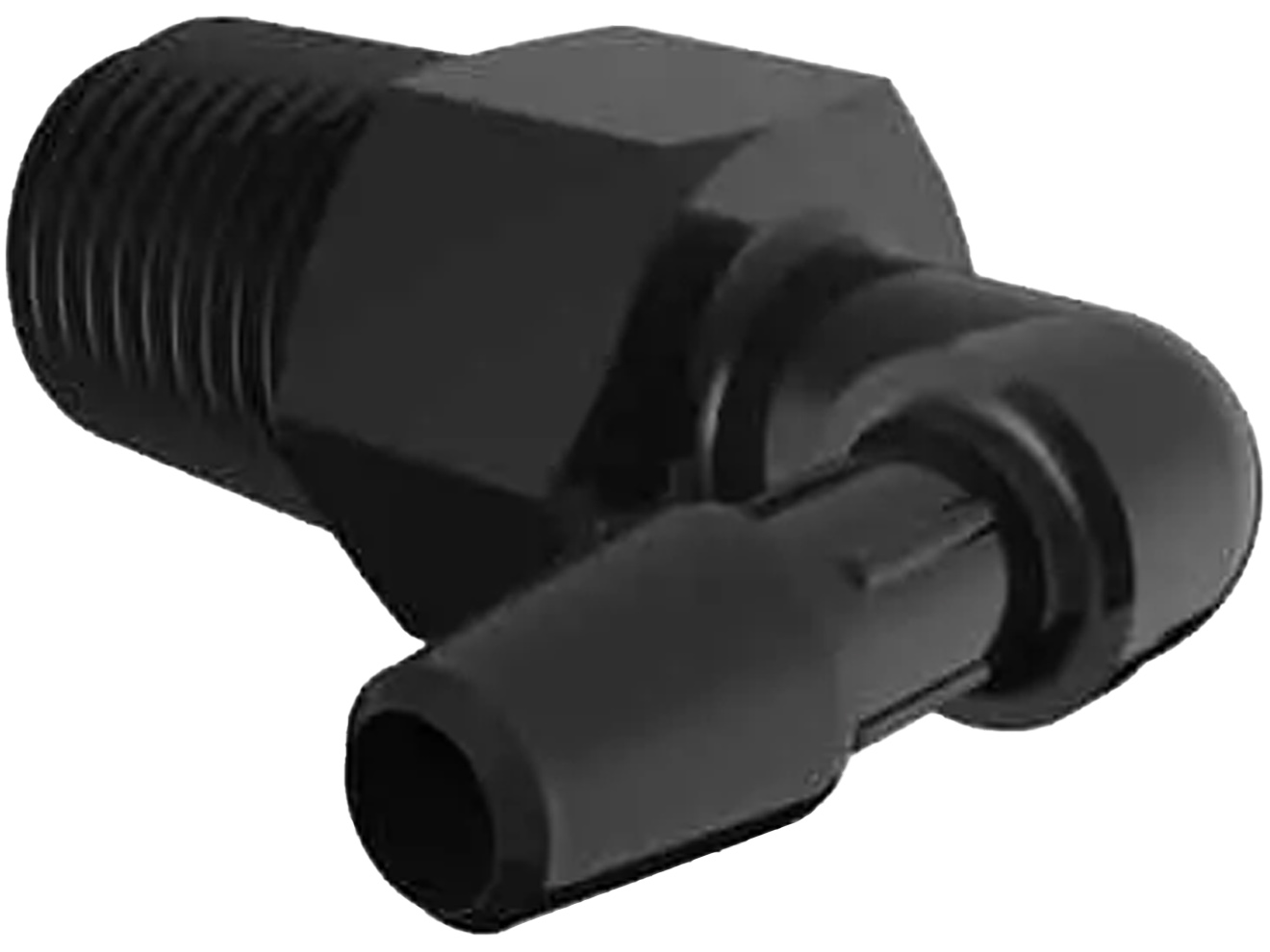

Eldon James British Threaded Elbow Fitting

Chemical resistant fitting with 1/8 to 1/2in barb and 1/8 to 3/8in BSPT thread connection options. Cleanroom manufacturing available.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-800-795-6436. We’re open Mon - Fri / 8:00 AM - 5:00 PM ET.
Starting Price: $0.53
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
Highlights...

Features

  • Kynar, nylon, HDPE, or PP material options
  • Threaded connection:
    • 1/8 to 3/8in BSPT
  • Hose barb connection:
    • 1/8 to 1/2in ID
  • Cleanroom manufacturing is available for L4B-6NK7
  • Meets USP Class VI requirements
  • RoHS compliant

Eldon James British threaded elbow fitting allows for easy change of direction of fluid flow in medical and beverage applications. These elbow fittings come in a variety of chemical-resistant materials with a 1/8 to 1/2in single barb connection on one side and a 1/8 to 3/8in BSPT thread on the other.

BSPT threads utilize the Whitworth thread form, which is designed to provide a pressure-tight fit through the mating of the threads. This is accomplished by cutting the threads on a taper. Because they are tapered, the thread can only screw into the companion female thread a certain distance before it jams. The standard specifies this distance as a length based on hand-tight engagement; a convenient rule-of-thumb for plastic threads is: finger-tight plus 1/2 to 1 turn with a wrench. Overtightening the plastic thread may cause unwanted stress on the fitting.

The other end of the threaded fitting has a single barb connection that allows the tube to be compressed behind the barb. This creates a more secure seal than multiple barb configurations. They are constructed with an anti-rotation device on the barb shaft to prevent the tubing from rotating or twisting on the elbow fitting, and no parting lines to help prevent leak paths from forming.
