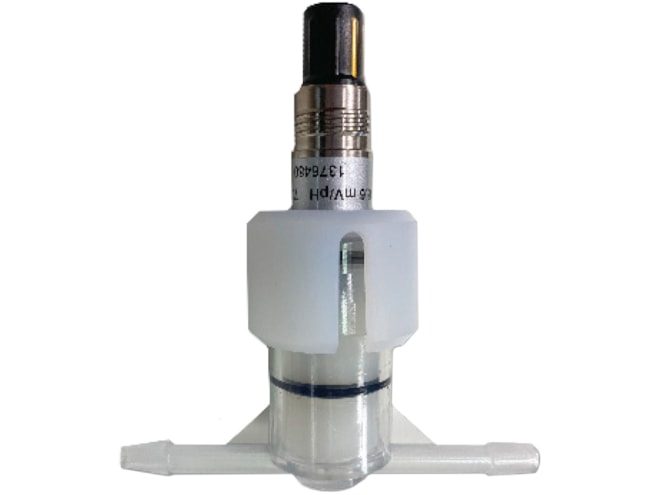

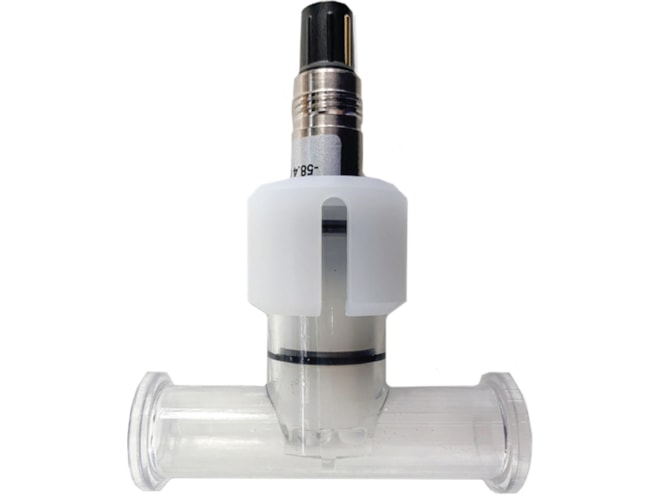

PendoTECH Single Use In-line pH Sensor
Polysulfone sensor with rapid response time for accurate and reliable pH measurements in downstream bioprocessing operations.
Overview
Features
- 41 to 140°F operating temperature range
- 3 to 10 pH range
- 7.20±0.25pH zero-point
- Polysulfone material
- pH-Sensitive glass membrane
- Compatible with gamma irradiation
- No process calibration required for use
- For applications where in-line sensing is necessary
- Compatible with METTLER TOLEDO transmitters
Description
The PendoTECH Single Use In-line pH Sensor is used to determine the acidity or alkalinity of a solution to help maintain the stability of large biomolecules in a specific pH range. This electrochemical pH sensor uses two electrodes, a pH-sensitive electrode and a reference electrode, and a temperature probe to determine the pH value of a solution. The potential difference between the two electrodes is measured and used to determine the number of hydrogen ions in the solution, which provides the pH value.
Real-time pH measurement is necessary for product purification operations, as solutions flow dynamically through a tube. The electrochemical pH probe offers accuracy and rapid response time, making it ideal for capturing rapid shifts in pH due to valve position changes or process changes. This single use model is designed to withstand gamma irradiation and prevent cross-contamination within an application.
