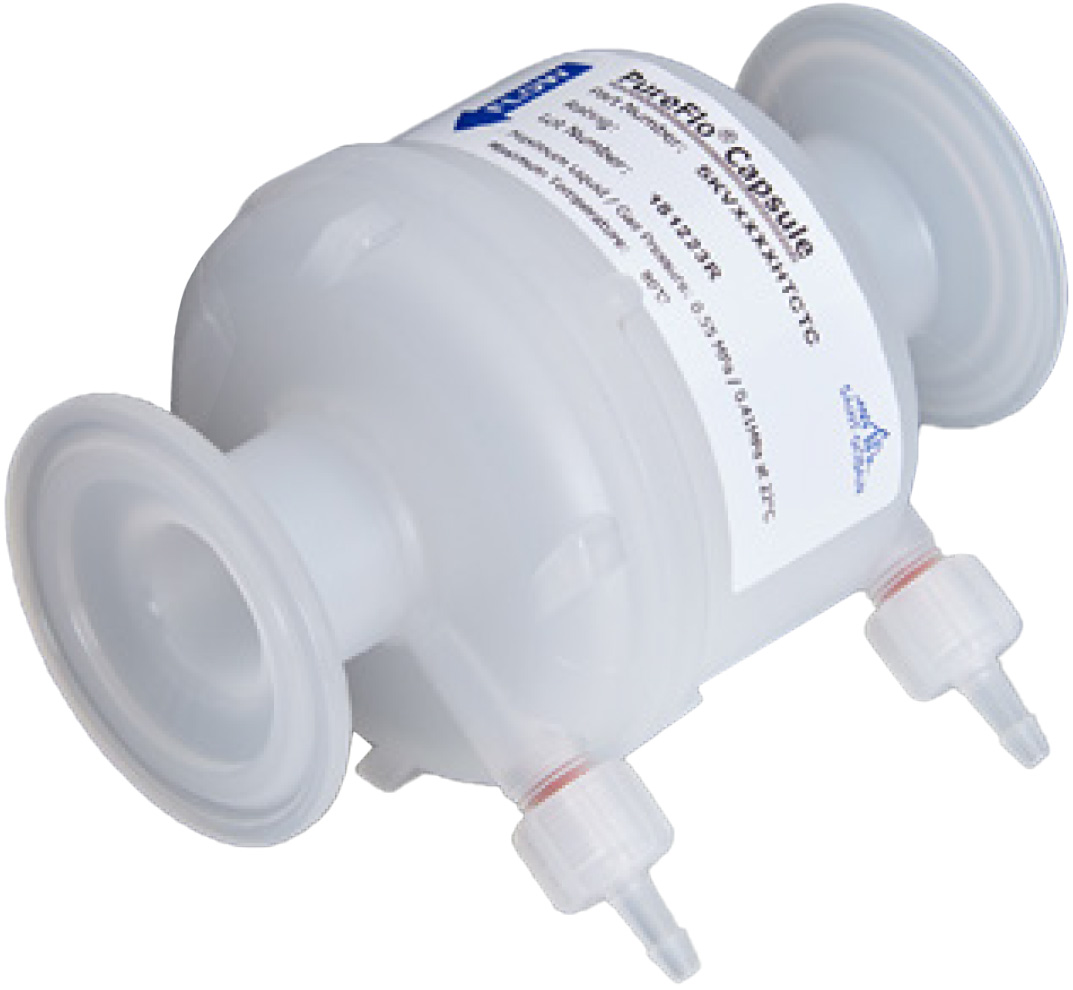

Saint-Gobain PureFlo PE Mid Size Capsule Filter

Gamma-irradiatable capsule with 0.2μm filter membrane, optional vents, and temperature tolerance up to 60°C for high flow rate applications.

Starting at $137.15
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • Polyethylene materials
  • 71.5mm body diameter
  • 56 to 260mm length without fittings
  • 0.2μm filter membrane
  • 550 to 3800cm2 filtration area
  • 60°C maximum temperature
  • 59.5psi maximum inlet pressure at 22°C
  • 72.5psi maximum forward differential pressure at 22°C
  • 30.45psi maximum reverse differential pressure at 22°C
  • Sterilization methods:
    • Gamma irradiation up to 50kGy
    • Ethylene Oxide (testing is recommended)
  • Inherently hydrophobic materials

The Saint-Gobain PureFlo PE Mid Size Capsule Filter is an easy-to-use filtration unit designed for small-scale, single-use sterile assemblies. This filter offers superior flow performance by incorporating a sterilizing grade 0.2μm membrane that exhibits a lower pressure drop. This superior flow performance results in a lightweight, compact filter designed to promote optimal process efficiency. The PureFlo PE full-size capsule is available in four sizes with hose barb or tri-clamp fittings, and the option to exclude vents near the inlet and outlet.

The PureFlo PE series features a polyethylene shell and a hydrophobic polyethylene membrane that demonstrate exceptional flow performance in venting applications. This material also allows the filter to withstand gamma irradiation and Ethylene Oxide sterilization methods.

Typical Applications

  • Bioreactor vent
  • Moisture barrier
